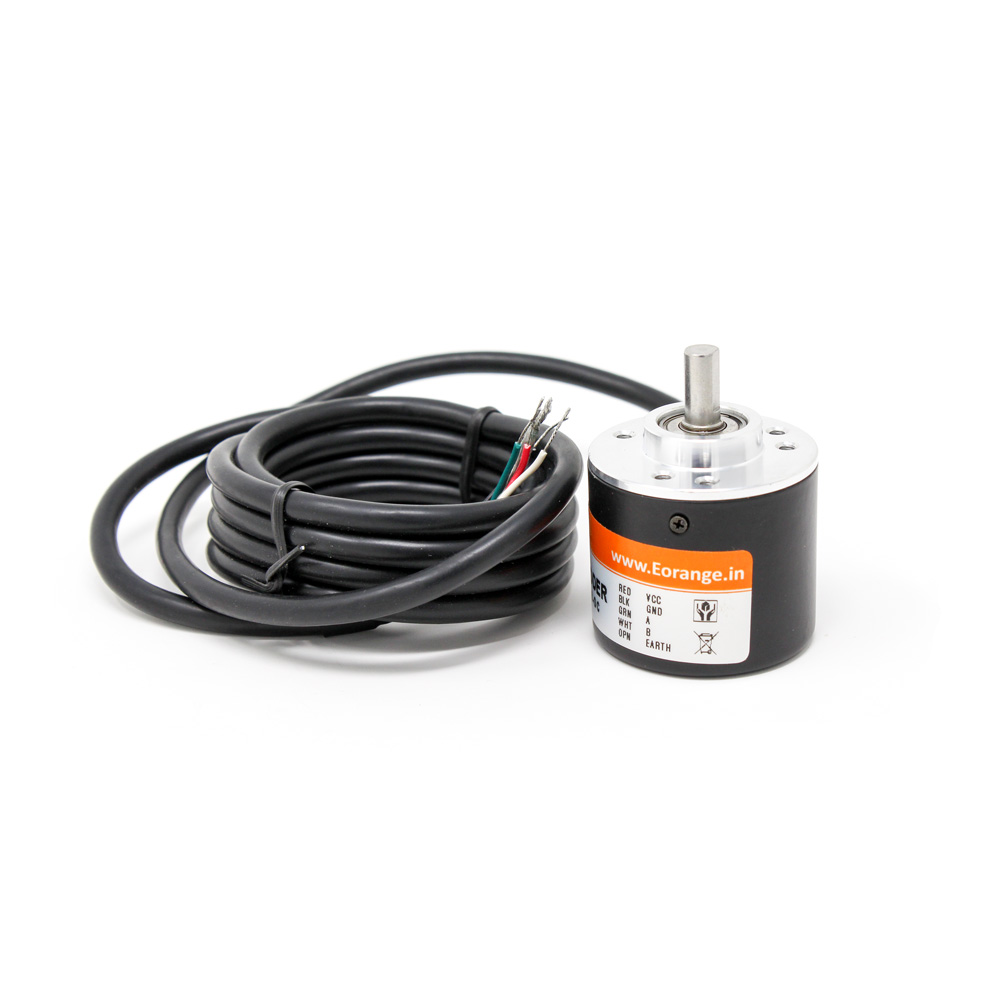

Optical Rotary Encoder

If you want to build a project where the machine can control the speed of the conveyer belt as well as the direction of movement, a rotary encoder is a must-have component. Keeping this in mind, Dot Print and Packaging is introducing the Optical Rotary Encoder at a competitive price.

Product Description

If you want to build a project where the machine can control the speed of the conveyer belt as well as the direction of movement, a rotary encoder is a must-have component. Keeping this in mind, Dot Print and Packaging is introducing the Optical Rotary Encoder at a competitive price. A rotary encoder is a type of position sensor which is used for determining the angular position of a rotating shaft. It generates an electrical signal, either analog or digital, according to the rotational movement.

Product Specification

Encoder Type Incremental
Operating Voltage (VDC) 5 ~ 24
Current Consumption (mA) ≤40
Maximum Speed 5000 RPM
Pulse Per Revolution (PPR) 600
Counts Per Revolution (CPR) 2400
Operating Temperature Range (°C) -24 to 84
Output Phase AB
Protection Standard IP52
Shaft Type D-type Solid
Shaft Length (mm) 12
Shaft Diameter (mm) 6
Mounting Hole(mm) M3
Weight (gm) 121
Body Dimensions (Dia. x Length) mm 40 x 38.40
Cable Length (Meter) 1.5
Shipment Weight 0.19 kg
Shipment Dimensions 10 × 8 × 5 cm
